Facility Instruments
Providing various instrument and peripheral device for each measuring and testing
Custumizing can be provide besed on your request.
| Product name | Type |
|---|---|
| Video inpause unit |
VIS1610 Video inpause unit is a device which indicate each test conditions (e.g. frequency, modulation, applied voltage, output data of signal generator) on to TV monitor. |
| CCTV System for monitoring EUT |
COC-1000(Controller), TV2200(Stand) CCTV, CCTV controller, Camera stand/mast. During EMS testing, you can check the EUT behaviour from a Shielded room on a monitor. CCTV controller can operate camera angle from Measuring room. |
|
TFT liquid crystal monitor monitor for Measuring control room Monitor size by requested (15″ 17″ etc.) |
|
| External monitor for receiver |

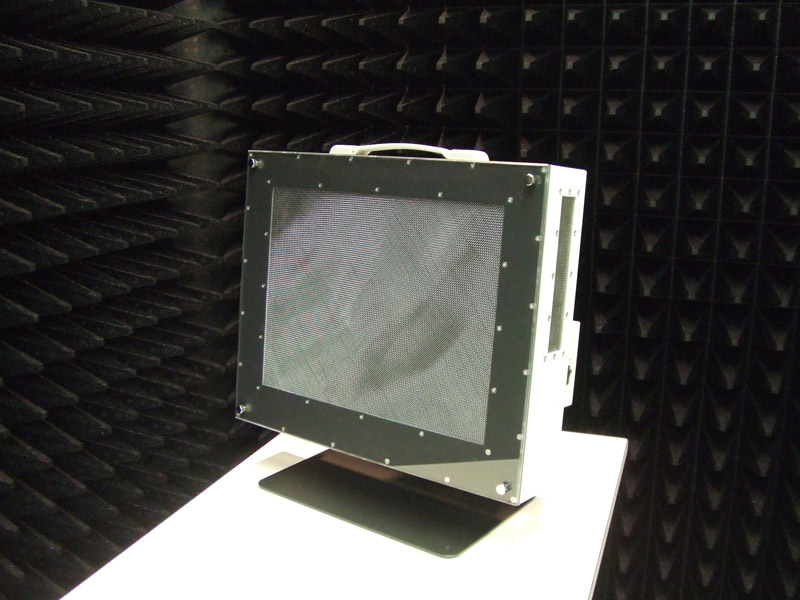

ECM01 Shielded monitor using at Anechoic chamber Monitor size by requested (15″ 17″ etc.) |
| Antenna mast |
Automatic type: AM4000 Manual type: AM3000, AM3000 H/V
|
| Turn table/EUT table |
Wood table
Resin table
 |
| Antenna mast Turn table controller |
DOC-200 Series (Optical communication type) |
| Voltage-Optical Converter System |
VOCS-030 VOCS-030 is a voltage monitor device which consists of Tx-Unit (E/O converter) and Rx-Unit (O/E converter). Tx-Unit is completely shielded, this device can use even during EMS test, by connecting with optical cable of Tx-Unit and Rx-Unit. |
Antenna stand
| Product name | Type |
|---|---|
| AS1000 |

|
|
new
AS4002A |
|
Antenna holder
| Product name | Type |
|---|---|
|
Meets requirements of FCC(ANSI C63.4 2009) for compliance with measurements above 1GHz.
new
AH045SBK |
Possible to use for various kinds of antenna maker and set on tripod.
|
